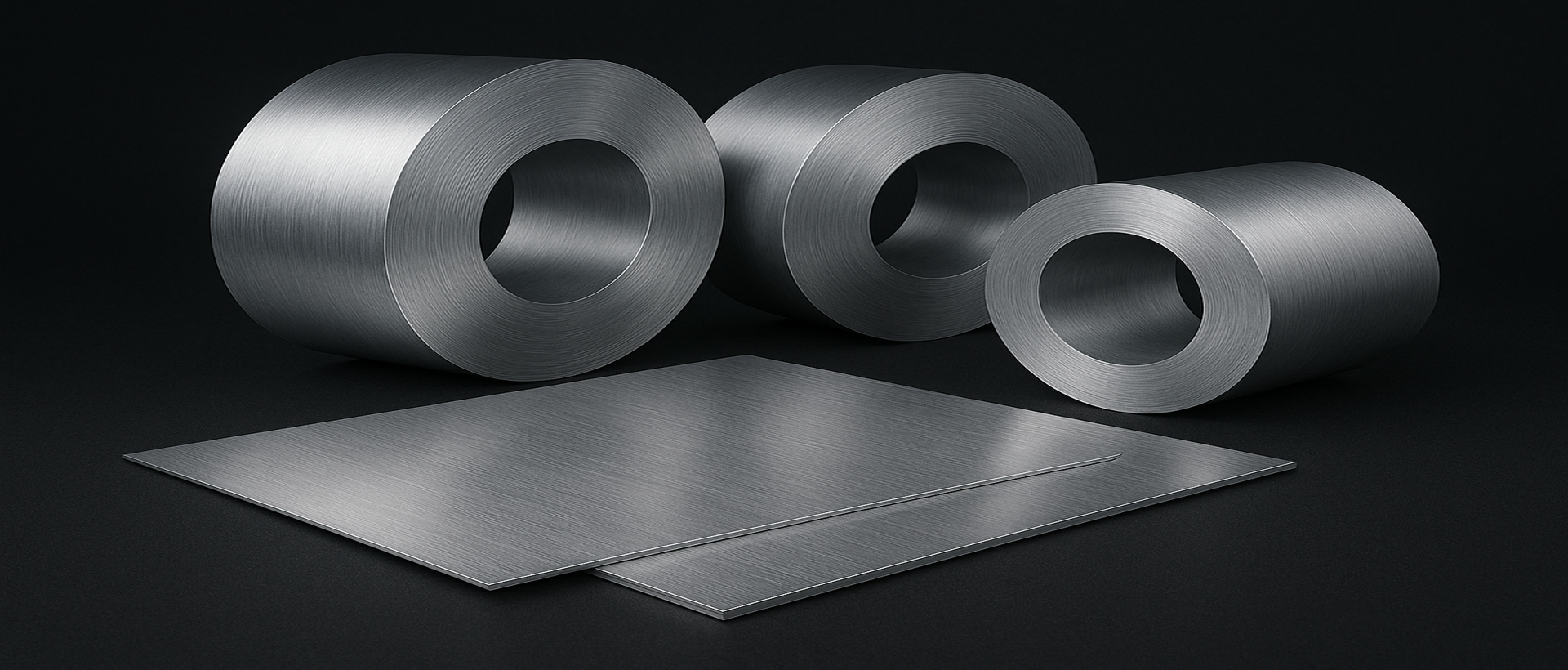

Aluminium Sheets & Coils

Aluminium Sheets & Coils

Aluminium Alloy Sheets and Coils are widely used in various industrial and commercial applications due to their excellent combination of light weight, strength, corrosion resistance, and formability. Manufactured using premium-grade raw materials, these alloys are available in different tempers and thicknesses to meet diverse application needs.

Aluminium alloy sheets and coils exhibit superior surface finish, high reflectivity, and excellent thermal and electrical conductivity. They are easy to fabricate through processes such as welding, machining, and forming, making them ideal for use in industries such as automotive, aerospace, construction, marine, and electrical.

Available in various grades such as 1050, 1055A, 1100, 4026, 5052, and 8030, each alloy offers distinct mechanical and chemical properties tailored for specific performance requirements. These sheets and coils are supplied in standard and custom dimensions with mill finish or surface coatings as per customer specifications.

Need Assistance?

Contact our team for more information @ +91-88808 08883 / +91-99017 48615

Request a Quote

Key Features

High corrosion resistance in chemical and marine environments
Excellent formability and workability for spinning, drawing, and bending
High thermal and electrical conductivity
Good weldability and brazeability
Non-heat treatable alloy – strength enhanced through cold working
Excellent surface finish and reflectivity
Cost-effective for general industrial and decorative uses

Chemical Composition (% by weight)

Element	Minimum	Maximum
Aluminium (Al)	99.50	—
Copper (Cu)	—	0.05
Iron (Fe)	—	0.40
Manganese (Mn)	—	0.05
Silicon (Si)	—	0.25
Zinc (Zn)	—	0.07
Titanium (Ti)	—	0.03
Other (each)	—	0.03
Other (total)	—	0.10

Mechanical Properties (Typical for 1050-H14 Temper)

Property	Typical Value	Unit
Tensile Strength	95 – 120	MPa
Yield Strength (0.2% offset)	35 – 70	MPa
Elongation (in 50 mm)	25 – 40	%
Brinell Hardness	28 – 35	HB
Modulus of Elasticity	69	GPa
Poisson’s Ratio	0.33	—

Physical Properties

Property	Typical Value	Unit
Density	2.71	g/cm³
Melting Range	650 – 655	°C
Thermal Conductivity	222	W/m·K
Electrical Conductivity	59% IACS	—
Coefficient of Thermal Expansion	23.5 × 10⁻⁶	/°C
Specific Heat	0.900	J/g·°C
Modulus of Rigidity	26	GPa
Reflectivity	80 – 90	%

Standard Sizes (Sheets & Coils)

Product Form	Thickness (mm)	Width (mm)	Length / Coil Form
Sheets	0.2 – 6.0	500 – 1500	1000 – 3000 mm
Coils	0.2 – 3.0	500 – 1500	Coil form (up to 3 MT)
Plates	6.0 – 25	1000 – 1500	Up to 3000 mm
Circles / Discs	0.5 – 6.0	As per requirement	—

Applications

Chemical and food processing equipment
Heat exchangers and reflectors
Architectural panels and roofing sheets
Nameplates and signage
Storage tanks and vessels
Kitchenware and cookware
Deep drawing and spinning components
Electrical bus bars and conductors
HVAC systems and ducts

Key Features

Very high aluminium content for excellent corrosion resistance
Outstanding formability for deep drawing, spinning, bending
Excellent surface finish and reflectivity
Good thermal & electrical conductivity
Non‐heat‐treatable alloy — strength improved by cold work
Good weldability, solderability and brazeability
Suitable for chemical, food, architectural and decorative uses

Chemical Composition (% by weight)

Element	Minimum	Maximum
Aluminium (Al)	99.50	—
Copper (Cu)	—	0.05
Iron (Fe)	—	0.40
Manganese (Mn)	—	0.05
Silicon (Si)	—	0.25
Zinc (Zn)	—	0.07
Titanium (Ti)	—	0.03
Other (each)	—	0.03
Other (total)	—	0.10

Mechanical Properties (Typical — 1055A-H14-or-equivalent Temper)

Property	Typical Value	Unit
Tensile Strength (ultimate)	90 – 130	MPa
Yield Strength (0.2% offset)	30 – 70	MPa
Elongation in 50 mm	25 – 35	%
Brinell Hardness	28 – 35	HB
Modulus of Elasticity	69	GPa
Poisson’s Ratio	0.33	—

Physical Properties

Property	Typical Value	Unit
Density	2.71	g/cm³
Melting Range	643 – 657	°C
Thermal Conductivity	222	W/m·K
Electrical Conductivity	59% IACS	—
Coefficient of Thermal Expansion	23.6 × 10⁻⁶	/°C
Specific Heat	0.900	J/g·°C
Modulus of Rigidity	26	GPa
Reflectivity	80 – 90	%

Standard Sizes (Sheets & Coils)

Product Form	Thickness (mm)	Width (mm)	Length / Coil Form
Sheets	0.2 – 6.0	500 – 1500	1000 – 3000 mm
Coils	0.2 – 3.0	500 – 1500	Coil form (up to ~3 MT)
Plates	6.0 – 25	1000 – 1500	Up to ~3000 mm length
Circles / Discs	0.5 – 6.0	As per requirement	—

Applications

Chemical and food processing equipment
Architectural panels, roofing & cladding
Deep-drawing and spinning components
Reflectors & decorative trim
Name-plates and signage
Kitchen- and cookware, storage tanks and vessels
Electrical busbars and conductor components
HVAC and refrigeration systems, ductwork

Key Features

Excellent corrosion resistance
High thermal and electrical conductivity
Outstanding formability and weldability
High reflectivity and attractive surface finish
Non-heat-treatable alloy – strengthened by cold working
Ideal for chemical and food industry equipment

Chemical Composition (% by weight)

Element	Minimum	Maximum
Aluminium (Al)	99.00	—
Copper (Cu)	—	0.05 – 0.20
Iron (Fe)	—	0.95
Silicon (Si)	—	0.95
Manganese (Mn)	—	0.05
Zinc (Zn)	—	0.10
Other (each)	—	0.05
Other (total)	—	0.15

Mechanical Properties (Typical Values)

Property	Typical Value	Unit
Tensile Strength (Ultimate)	90 – 125	MPa
Yield Strength (0.2% Offset)	30 – 70	MPa
Elongation (in 50 mm)	30 – 40	%
Brinell Hardness	28 – 35	HB
Modulus of Elasticity	69	GPa
Poisson’s Ratio	0.33	—

Physical Properties

Property	Typical Value	Unit
Density	2.71	g/cm³
Melting Point	643 – 657	°C
Thermal Conductivity	222	W/m·K
Electrical Conductivity	59% IACS	—
Coefficient of Thermal Expansion	23.6 × 10⁻⁶	/°C
Specific Heat	0.900	J/g·°C
Reflectivity	80 – 90	%

Standard Sizes (Sheets & Coils)

Product Form	Thickness (mm)	Width (mm)	Length / Coil Form
Sheets	0.2 – 6.0	500 – 1500	1000 – 3000 mm
Coils	0.2 – 3.0	500 – 1500	Coil form (up to ~3 MT)
Plates	6.0 – 25	1000 – 1500	Up to 3000 mm length
Circles / Discs	0.5 – 6.0	As required	—

Applications

Chemical and food processing equipment
Architectural panels, roofing & cladding
Heat exchangers and reflectors
Cooking utensils and kitchenware
Printed sheets and signage
Storage tanks and vessels
Electrical bus bars and conductor parts
Decorative and reflective applications

Key Features

High silicon content improves wear and sliding-friction resistance
Good strength compared to standard wrought aluminium alloys
Suitable for sheet and plate forms for structural or wear-applications
Good capability for machining and finishing
Can be used where both moderate strength and abrasion resistance are required

Chemical Composition (% by weight)

Element	Minimum	Maximum
Silicon (Si)	9.0 – 11.5 %
Copper (Cu)	2.5 – 3.5 %
Magnesium (Mg)	0.7 – 1.4 %
Iron (Fe)	≤ 0.50 %
Zinc (Zn)	≤ 0.10 %
Titanium (Ti)	≤ 0.05 %
Bismuth (Bi)	1.0 – 2.5 %
Aluminium (Al)	Remainder (~ > 85 %)

Mechanical Properties (Typical Values)

Property	Typical Value	Unit
Tensile Strength (ultimate)	~ 505	MPa
Yield Strength	(data may vary by temper)	MPa
Elongation	(not widely published)	%
Modulus of Elasticity	~ 69	GPa
Brinell Hardness	(higher than standard alloys due to silicon-rich microstructure)	HB

Physical Properties

Property	Typical Value	Unit
Density	≈ 2.68 – 2.80	g/cm³
Melting Range	(varies due to high Si content)	°C
Thermal Conductivity	(lower than pure aluminium due to alloying)	W/m·K
Electrical Conductivity	(reduced vs pure Al)	% IACS
Coefficient of Thermal Expansion	(approximate)	/°C

Standard Sizes (Sheets & Coils)

Product Form	Thickness (mm)	Width (mm)	Length / Coil Form
Sheet / Plate	0.6 mm – 76 mm (0.015"–3.000")	various widths up to ~ 1500 mm+	custom lengths or plate sizes per mill

Applications

Wear-resistant sliding components and bearing surfaces
Heavy-duty wear plates, structural panels subject to abrasion
Sheet and plate for machinery where friction/wear is significant
Manufacturing of parts requiring combination of moderate strength + high wear resistance

Key Features

Excellent corrosion resistance, especially in marine and saltwater environments
High fatigue strength and good weldability
Superior formability and surface finish
Moderate to high strength among non-heat-treatable alloys
Good anodizing response and decorative appearance
Resistant to atmospheric and chemical corrosion

Chemical Composition (% by weight)

Element	Minimum	Maximum
Magnesium (Mg)	2.2	2.8
Chromium (Cr)	0.15	0.35
Silicon (Si)	—	0.25
Iron (Fe)	—	0.40
Copper (Cu)	—	0.10
Manganese (Mn)	—	0.10
Zinc (Zn)	—	0.10
Other (each)	—	0.05
Other (total)	—	0.15
Aluminium (Al)	Balance

Mechanical Properties (Typical Values)

Property	Typical Value	Unit
Tensile Strength (Ultimate)	215 – 265	MPa
Yield Strength (0.2% Offset)	160 – 195	MPa
Elongation (in 50 mm)	7 – 12	%
Brinell Hardness	60 – 70	HB
Modulus of Elasticity	70	GPa
Fatigue Strength	90	MPa
Poisson’s Ratio	0.33	—

Physical Properties

Property	Typical Value	Unit
Density	2.68	g/cm³
Melting Range	607 – 649	°C
Thermal Conductivity	138	W/m·K
Electrical Conductivity	35% IACS	—
Coefficient of Thermal Expansion	23.8 × 10⁻⁶	/°C
Specific Heat Capacity	0.90	J/g·°C

Standard Sizes (Sheets & Coils)

Product Form	Thickness (mm)	Width (mm)	Length / Coil Form
Sheets	0.5 – 6.0	500 – 1500	1000 – 3000 mm
Coils	0.3 – 3.0	500 – 1500	Coil form (up to ~3 MT)
Plates	6.0 – 50	1000 – 2000	Up to 4000 mm length
Circles / Discs	0.5 – 6.0	As required	—

Applications

Marine and shipbuilding components
Fuel tanks and oil lines
Pressure vessels and storage tanks
Architectural panels and roofing
Transportation and automotive parts
Refrigeration and air-conditioning equipment
Food processing and chemical industry equipment
General sheet metal and fabricated products

Key Features

High electrical conductivity
Excellent corrosion resistance
Good formability and flexibility
Lightweight and durable
Good resistance to fatigue and vibration
Superior performance in electrical and power transmission systems

Chemical Composition (% by weight)

Element	Minimum	Maximum
Iron (Fe)	0.5	1.0
Copper (Cu)	0.05	0.20
Silicon (Si)	—	0.15
Manganese (Mn)	—	0.05
Magnesium (Mg)	—	0.05
Titanium (Ti)	—	0.05
Other (each)	—	0.05
Other (total)	—	0.15
Aluminium (Al)	Balance

Mechanical Properties (Typical Values)

Property	Typical Value	Unit
Tensile Strength	110 – 150	MPa
Yield Strength	40 – 90	MPa
Elongation (in 50 mm)	10 – 25	%
Brinell Hardness	35 – 45	HB
Modulus of Elasticity	69	GPa
Fatigue Strength	45	MPa
Poisson’s Ratio	0.33	—

Physical Properties

Property	Typical Value	Unit
Density	2.70	g/cm³
Melting Range	645 – 660	°C
Thermal Conductivity	235	W/m·K
Electrical Conductivity	57 – 61% IACS	—
Coefficient of Thermal Expansion	23.6 × 10⁻⁶	/°C
Specific Heat Capacity	0.90	J/g·°C

Standard Sizes (Sheets & Coils)

Product Form	Thickness (mm)	Width (mm)	Length / Coil Form
Wire Rods	9.5 mm – 12 mm	—	Coil form
Stranded Conductors	Up to 61 strands	—	Reels / Drums
Flat Strips	0.5 – 2.0 mm	Up to 300	Coil or Sheet
Foils	0.15 – 0.30 mm	Up to 1000	Coil form

Applications

Electrical power cables and conductors
Transformer windings
Utility and building wiring
Automotive and industrial cables
Aluminium-clad steel conductors (ACSR)
Foils and shielding tapes for cables
Bus bars and electrical connectors
